SAP PI Monitoring also known as Process Orchestration PO Monitoring

Posted by Linh Nguyen on May 10, 2017 10:18:13 PM

According to SAP, Process Orchestration (SAP PO) is a tool to model and design business processes, primarily used to integrate SAP systems and external systems.  There can easily be confusion with interchanging terms used, XI (Exchange Infrastructure), PI (Process Integration) and PO (Process Orchestration), but really they are all the same thing, just SAP evolution over time with increased functionality.  In this publication we will summarize the main difference and how to simplify the SAP monitoring of this increasingly important glue that holds together a SAP-based ecosystem.

Those of you who have worked with early renditions, it was called XI, a SAP Netweaver dual-stack application designed to synchronize data between different systems such as orders between ECC and CRM.  The adapters are what make the data exchange possible between systems (similar to EDI or iDocs concepts), and thus there was born the Adapter Framework (AF) running on an engine called Integration Server (IS).  Over time, XI became PI, pretty much the same thing just with upgraded functionality - more adapters and integration scenarios.  Now with Netweaver 7.4-7.5, PO replaces PI, although still collectively known as PI/PO.  However PO improves upon PI with inclusion of the 'Process' capabilities to model business processes (BPM - Business Process Monitoring) and mixing of various adapters (data processing types).  Confused?  You're not alone!  For SAP Basis teams, sap performance monitoring of XI/PI/PO has gotten really complicated because PO has evolved into a full standalone SAP J2EE application on top of Netweaver Java AS, comprising of PI (AEX - Advanced Adapter Engine Extended) and BPM.

Application Hierarchy

SAP PI Dual-Stack Architecture:

SAP PI Dual-Stack Architecture

(Diagram courtesy SAP SE)

SAP PO Single-Stack Java Architecture:

SAP PO Single-Stack Java Architecture

(Diagram courtesy SAP SE)

Process Orchestration PO Monitoring Complexity

Netweaver Administrator's (NWA) PIMON

Unlike CCMS for Netweaver ABAP, Netweaver Java AS has its own set of monitoring instrumentation provided by the Netweaver Administrator (NWA) web interface.  SAP Java monitoring many links and screens to navigate in order to check the various components, see Process Orchestration Monitoring for SAP's description on how to access monitors for PO (pimon - SAP PI Monitoring), and PI 7.3 Monitoring Guide for Single-Stack

SAP Netweaver Administrator PI Monitoring Home Screen

Alternatively, you can connect the Java stack to SAP CCMS of an ABAP system, but that introduces additional dependencies and potential reliability problems typical of CCMS.

Solution Manager 7.2 Central PI Monitoring

If you're a SAP Solution Manager shop and want to invest resources in configuring and managing it to monitor PO, visit Central PI Monitoring for Solman 7.2

The jury is still out whether Solman 7.2 made it any easier to monitor and manage SAP PO.  Let us know your experience.

IT-Conductor Streamlines PO Monitoring

IT-Conductor recently introduced SAP PO Monitoring in addition to SAP J2EE Infrastructure Monitoring.  Unlike native SAP J2EE monitoring and Solution Manager, IT-Conductor delivers a highly functional, cloud-based, logical and flexible way to monitor and manage SAP J2EE Infrastructure with PO and BPM add-ons, in a single service grid.

PI/PO Service Grid

Once the SAP Netweaver Java AS system has been added to SAP Java monitoring via a Wizard, IT-Conductor discovers the SAP Java Cluster Nodes then the PI components are associated including:

  • Java Server Nodes
  • Integration Server (AEX)
    • Adapter Framework:
      • Caches
      • Communication Channels
      • Jobs
      • Messages
      • Queues

The above covers status, performance metrics and workloads that helps with Performance monitoring for the Advanced Adapter Engine alongside the SAP J2EE server.

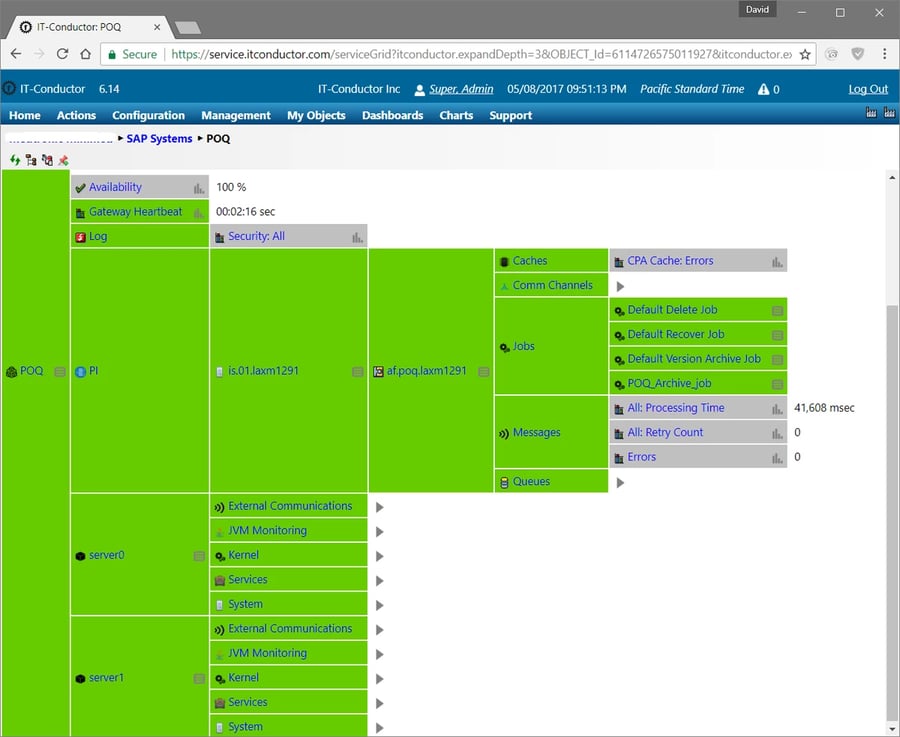

IT-Conductor SAP PO Monitoring Service Grid

Time-Synchronized Troubleshooting Context

IT-Conductor introduces its standard time-synchronized context approach to this environment enabling unparalleled visibility into performance bottlenecks and making troubleshooting easy and fast

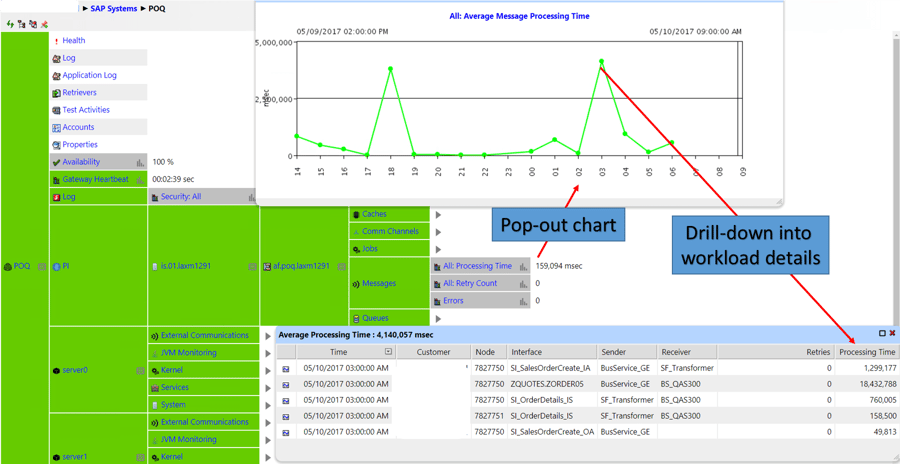

IT-Conductor SAP PO Monitoring  with Drill-down Context

Events and Performance Together

Historical, Interval-based collectors allow you drill down into the errors and have the whole context at your fingertips.  More analysis can be done from a single console.

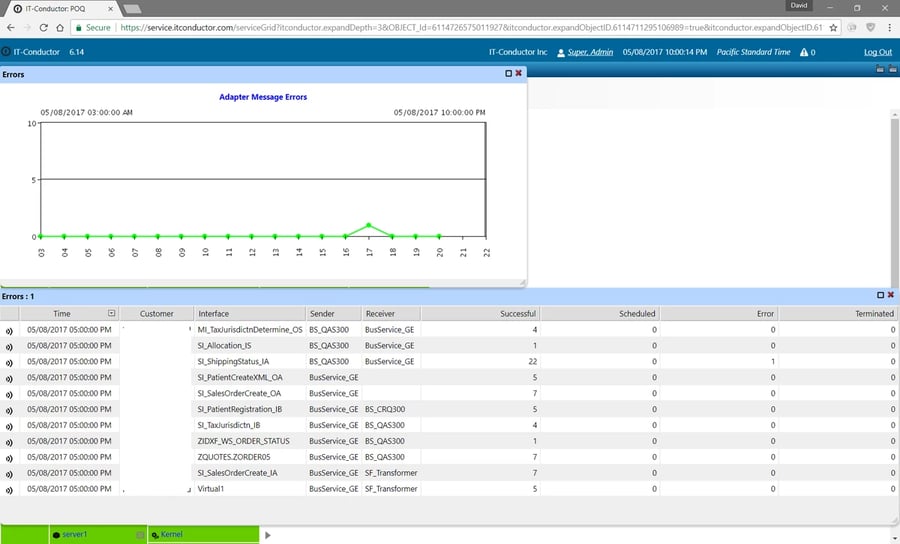

IT-Conductor SAP PO Monitoring Events/Errors in Snapshot Intervals

IT-Conductor - More Good Things to Come for PO Monitoring

IT-Conductor supports PI/PO Monitoring today, and is already testing enhancements to include Business Process Monitoring (BPM) that you can benefit immediately when released due to our agile cloud-based continuous innovation platform.  So whether you just need SAP Java stack monitoring, PI/PO Monitoring, or any application running on SAP Java, start your journey today without cumbersome and expensive on-premise silo tools.
