Introduction

As more sites are using system replication (SR) with feature ‘active:active read_enabled’, it it is of great benefit to perform SAP HANA monitoring not only the primary site – but also the secondary site.

This presentation covers IT-Conductor cloud-based monitoring support for HA/DR/SR feature – monitoring HANA both sites of HA/DR landscapes, and the system replication activity/status in more detail.

In prior posts, we have covered several topics on HANA HA/DR, System Replication and Dynamic Tiering, please visit these for additional background:

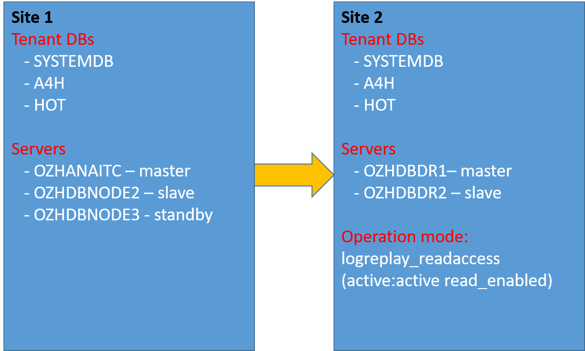

HANA Landscape

IT-Conductor HANA Monitoring HA/DR Landscape

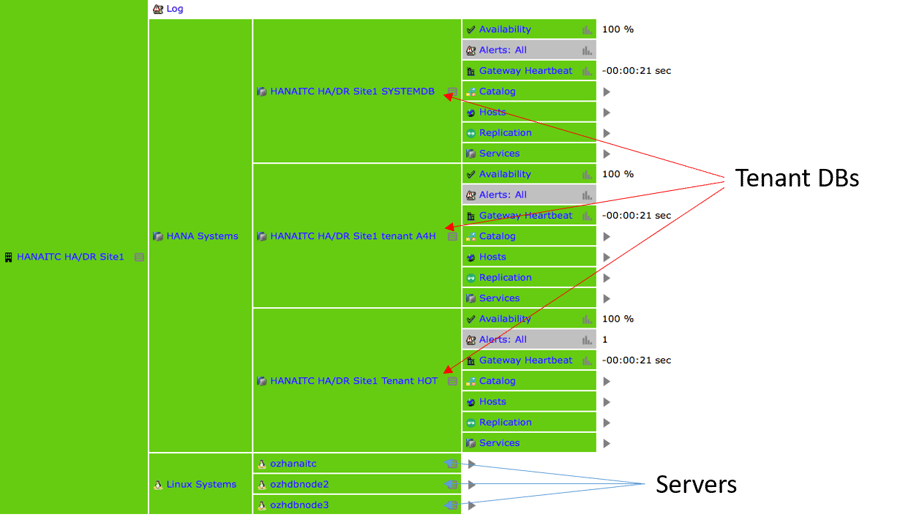

Definition of Primary system within IT-Conductor

SITE1 – each tenant and servers are monitored

IT-Conductor HANA Monitoring HA/DR Definition Site1

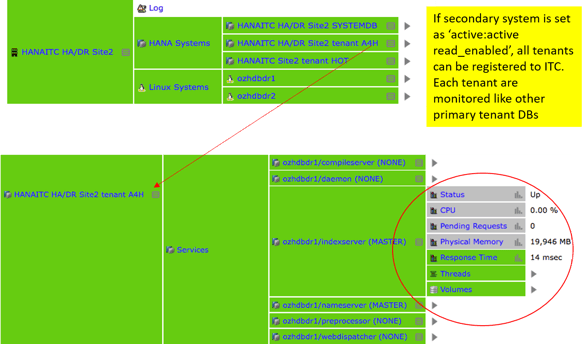

Definition of Secondary system within IT-Conductor

SITE2 - HANA Tenants

IT-Conductor HANA Monitoring HA/DR Definition Site2

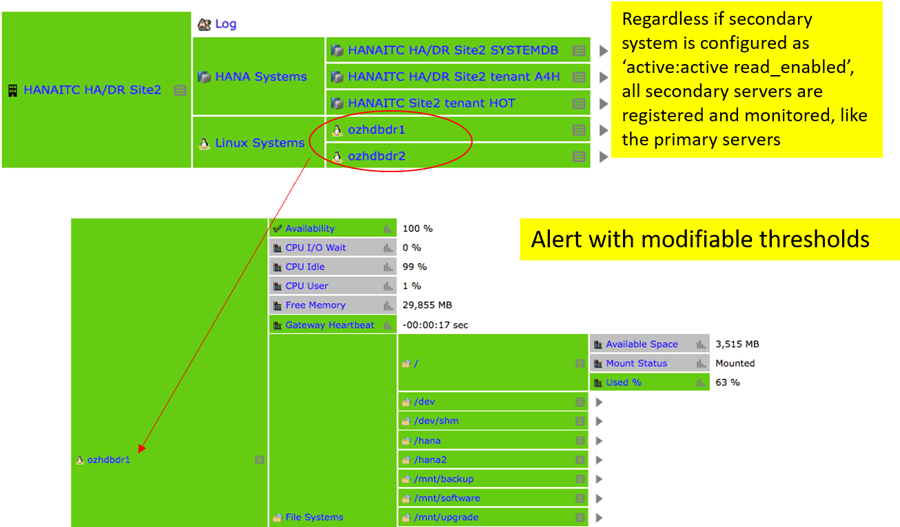

SITE2 - Linux Hosts

IT-Conductor HANA Monitoring HA/DR Definition Site2 Linux Hosts

SITE2 - Monitor Thresholds

IT-Conductor HANA Monitoring HA/DR Definition Site2 Monitor Thresholds

HANA System Replication Monitoring

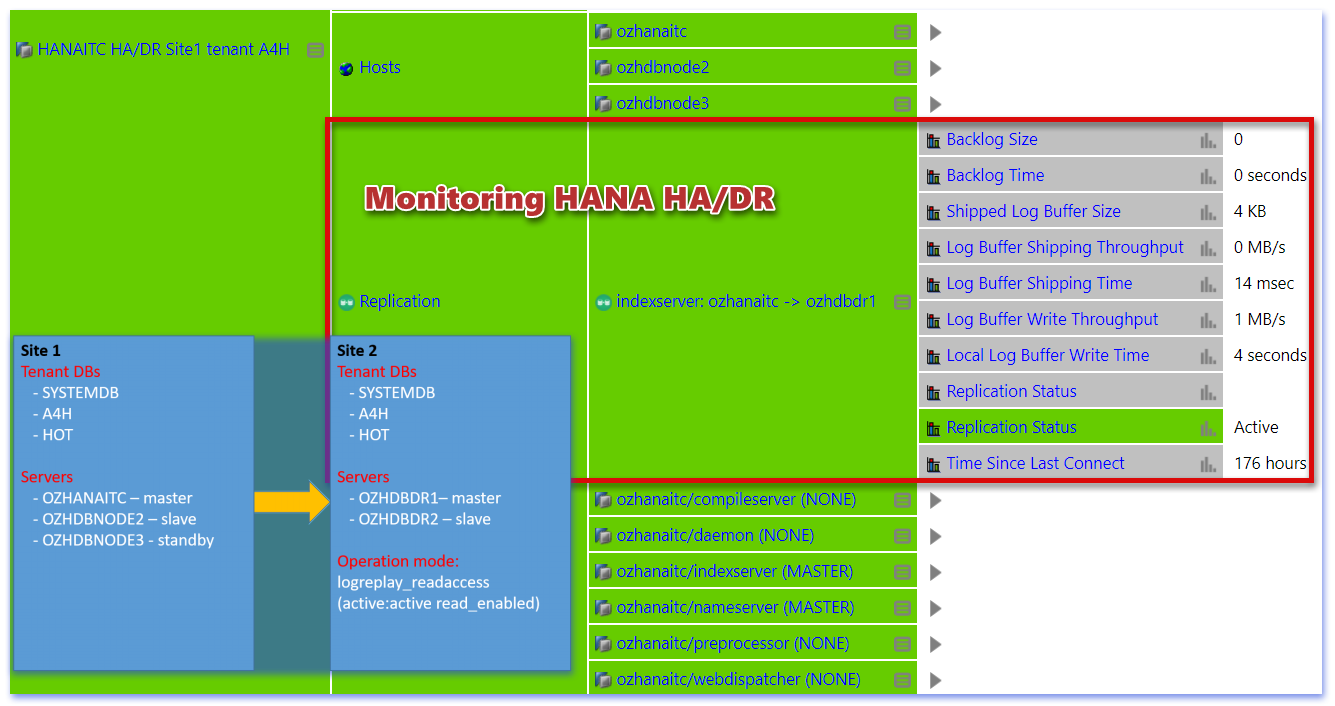

Overview

IT-Conductor HANA Monitoring HA/DR Overview

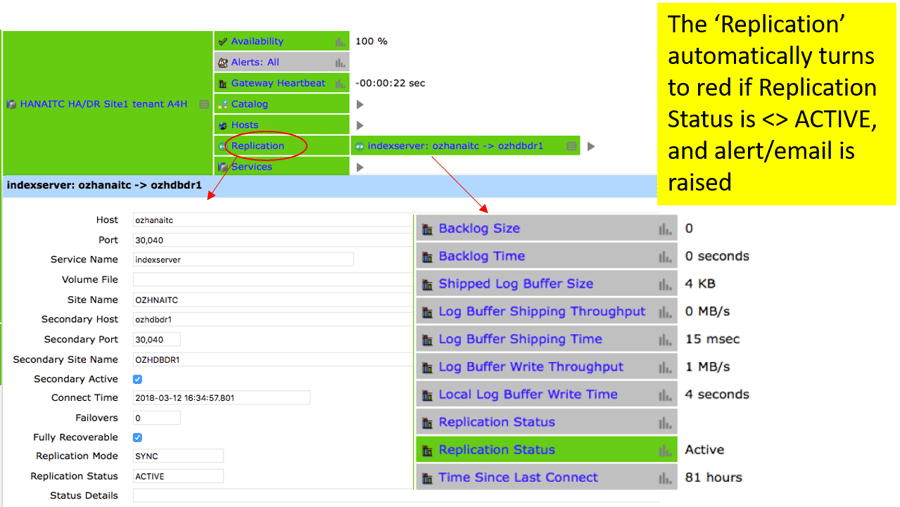

Drill down on the Replication button will show more detail/ status

IT-Conductor HANA Monitoring HA/DR Grid Replication Drilldown

SR Takeover or Failover

After a takeover

  • SITE2 will continue to be monitored as normal, automatically picking the replication status/details.

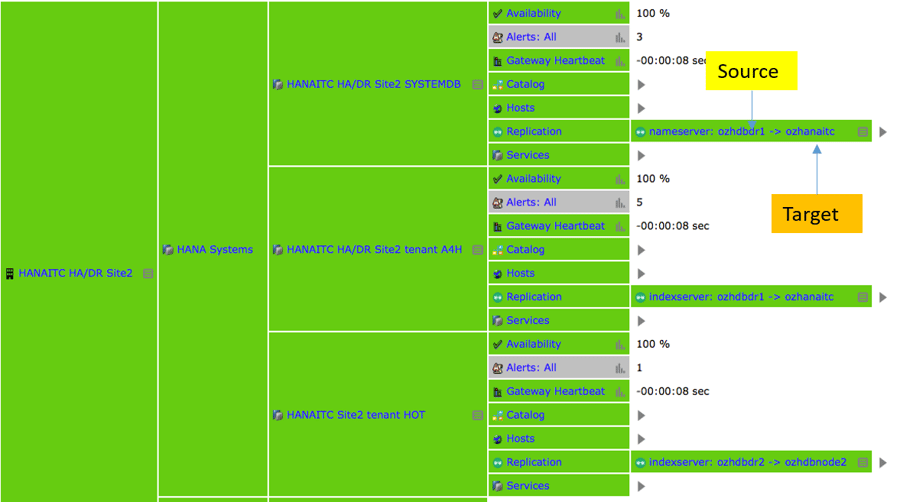

IT-Conductor HANA Monitoring HA/DR Grid SR Takeover

  • After the previous SITE is up and registered again as secondary in HANA, ITC will automatically reflect the new ST status, and monitor SITE1

SR Alerts/Email

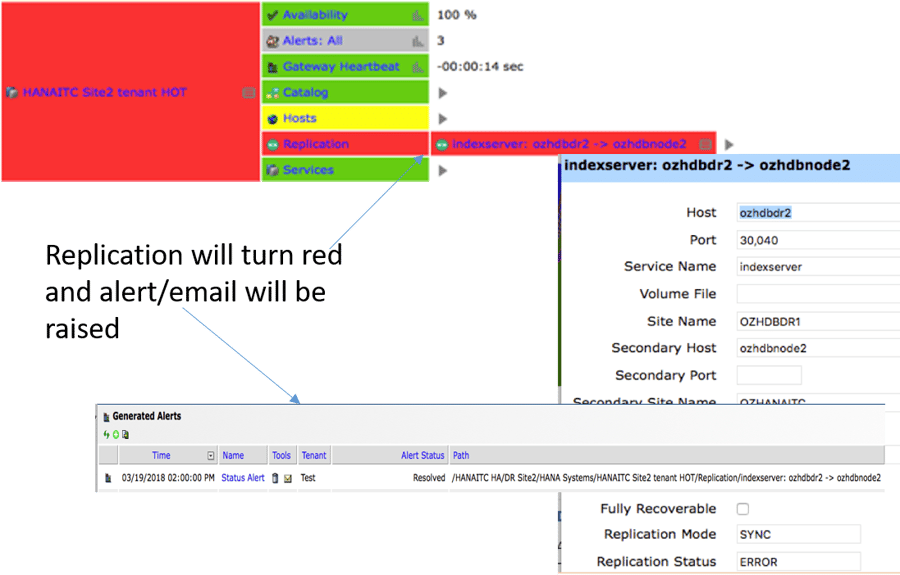

  • In this scenario, SITE2 is primary, HOT DB was stopped in SITE1 to create SR error status.

IT-Conductor HANA Monitoring HA/DR Grid SR Alert

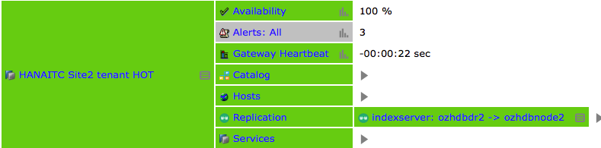

  • As soon as the error situation is resolved, the Replication will automatically turn to green (normal)

IT-Conductor HANA Monitoring HA/DR Grid SR Alert Resolved

Monitoring for Dynamic Tiering with SR

  • Like the other services, ITC also monitor the esserver service of Dynamic Tiering, including the replication status.

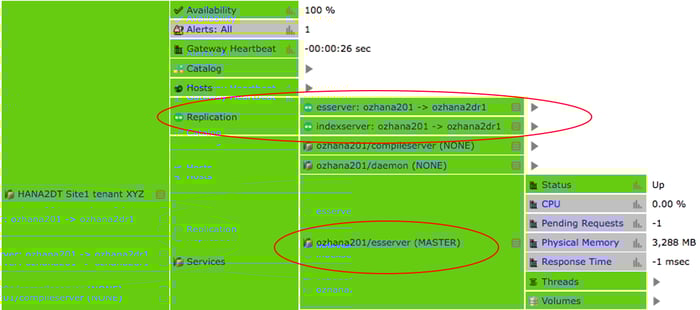

Primary site – SITE1

IT-Conductor HANA Monitoring HA/DR Grid SR Dynamic Tiering Site1

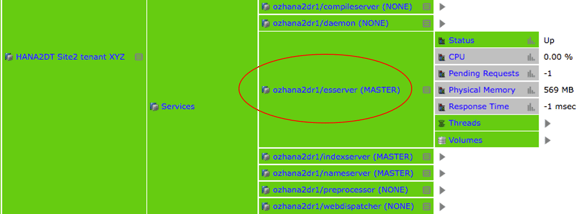

Secondary site – SITE2

  • If the ‘active:active read_enabled’ is used for the secondary site, ITC also monitors the DT services

IT-Conductor HANA Monitoring HA/DR Grid SR Dynamic Tiering Site2

Summary – HA/DR and SR monitoring

IT-Conductor can monitor both the primary and secondary sides of an HA/DR landscape.

  • Tenant DBs and servers of primary system are monitored
  • Tenant DBs of secondary system are monitored (including Dynamic Tiering) – if configured as ‘active:active read_enabled’
  • Servers of secondary systems are monitored, regardless of the operation mode
  • After a takeover, IT-Conductor automatically discovers the SR status of the ‘new’ primary, and also the ’previous’ primary after it has been registered as secondary
